Steam & Process Controls Featured Product







" As a MAJOR distributor of market leading brand valves we are pleased to offer  a comprehensive range to cover all your needs.

Please contact us for more information , valve selection, and price & availability ."

.

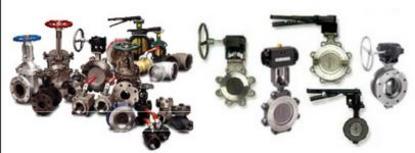

INDUSTRIAL VALVES :

TYPES: Gate, Knife Gate, Globe, Plug, Diaphragm, Piston, Check, Ball, Pinch, Parallel Slide, Sluice,

SIZE :6mm to 900mm, 1/8" to 36". Large sizes on request.

MATERIALS : Cast Iron, Brass, Bronze, Steel, Stainless Steel, Plastic.

CONNECTION : Screwed (scr.), bsp or npt, Flanged (flg.) BST " C, D, E, F, H, J, K.                                                      ANSI125, 150, 300, 600, 900, 1500. Socket weld, Butt weld.





VALVE SELECTION CHART :  for the (4) most common types :

  • Globe Valve :                                                                                                                                            advantage -Best shut off & regulating charateristics

          disadvantage - High pressure drop (head loss), Unidirectional

  • Gate Valve :                                                                                                                                            advantage -Low pressure drop. Straight through flow either direction

          disadvantage - Slow acting, bulky

  • Ball Valve :                                                                                                                                            advantage -Quick acting. Straight through flow in either direction. Low pressure drop & operating torque. Easily actuated

          disadvantage - Temperature limitations on seating material. Long " relative "face to face dimension

  • Butterfly Valve :                                                                                                                                            advantage -Quick acting. Good regulating charateristics. Compact & light. Lowpressure drop. Easily actuated

          disadvantage - Temperature / Pressure limitations

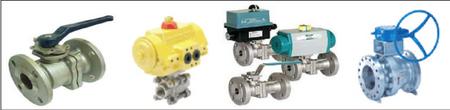

Small Ball Valves : 6mm to 80mm

A comprehensive range of Bronze, Cast Iron, Steel, Stainless Steel & Plastic ball valves are available.            Full bore or Reduced bore, most screwed with BSP or NPT connection, or Flanged valves.

Approvals include : DZR, AGA, Firesafe.

Service includes : water, oil, chemicals, air, gas & steam.

Configurations : 2-way, 3-way, L-port, T-port, variable control - open/close.

Actuation types : manual handle or wheel, Air or Electric actuators.












Large Ball Valve :  40mm to 900mm " or larger "

A complete range of Cast Iron, Steel, Stainless Steel ball valves are available. Full bore or Reduced bore, some screwed with BSP or NPT connection, socket weld, butt weld ends also available.

BUT most large body valves are Flanged valves.

Approvals include : BS, ANSI, ASTM, API602, AGA, Firesafe.

Types of service include : water, oil, chemicals,air, gas & steam.

Configuration includes : 2-way, 3-way, 4-way, L-port, T-port, variable control - open/close.

Actuation can include : manual handle or wheel, gearbox / wheel, Air or Electric actuation.

Pressure : ALL MAJOR CLASSES AVAILABLE, e.g.

  • ANSI150 - 1170kpa @ 260deg.c, 1965kpa cold
  • ANSI300 - 2826kpa @ 430deg.c, 5100kpa cold
  • ANSI600 - 5688kpa @ 430deg.c, 10200kpa cold
  • ANSI900 - 8500kpa @ 430deg.c, 15300kpa cold











Small Globe Valves :

A comprehensive range of Bronze, Cast Iron, Steel, Stainless Steel & Plastic valves are available. Screwed with BSP or NPT connection, Socket or Butt weld or Flanged valves.

Service includes : water, oil, chemicals, air, gas & steam.










Large Gate & Globe Valve :

A complete range of Cast Iron, Steel, Stainless Steel ball valves are available. Some screwed with BSP or NPT connection, socket weld, butt weld ends also available.

BUT most large body valves are Flanged valves.

Approvals include : BS, ANSI, ASTM, API602, AGA, Firesafe.

Types of service include : water, oil, chemicals,air, gas & steam.










Small Check Valve :

A comprehensive range of Bronze, Cast Iron, Steel, Stainless Steel & Plastic check valves are available. Most screwed with BSP or NPT connection.

Service includes : water, oil, chemicals, air, gas & steam.










Large Check Valves :

A complete range of Cast Iron, Steel, Stainless Steel check valves are available. Screwed with BSP or NPT connection, socket weld, butt weld ends also available.

BUT most large body valves are Flanged valves.

Approvals include : BS, ANSI, ASTM, API602, AGA, Firesafe.

Types of service include : water, oil, chemicals,air, gas & steam.






Pressure Reducing & Safety Relief Valves :

A complete range of Cast Iron, Bronze, Steel, Stainless Steel valves are available. Sizes up to 2" are usually screwed bodies. Most larger size valves are Flanged valves.

Types of service include : water, oil, chemicals,air, gas & steam.






Piston Valve :

The piston valve is a KLINGER invention. A Major advantage in this valve is the ability to replace the valve rings without removing the valve from the line.                      Throughout the world, they are used to regulate and control steam as well as highly aggressive media in the chemical industry or fine regulating in the oil industry. Leak tight across ports and to atmosphere, Energy Saving, Low Maintenance. Economic, easy inline service, No erosion to sealing service.











                        "JUST SOME OF THE PRODUCTS IN OUR VALVE CATALOGUE "

                                                         --- PLEASE CONTACT US TODAY ---
